Open-Prompt Showreel Videos

This playbook documents how we make the motion-graphics videos for Agent Swarm posts. The approach is one open prompt to one strong model, not a template pipeline: a Claude Code worker on claude-opus-5-5 at max effort designs, codes, renders and critiques the whole video in a scratch directory. The Lead briefs it, looks at the frames, and relays the result.

The worked example: the TLA+ races showreel, 24 seconds, made by a worker with this playbook. Jump to how it was made.

Music: "Mist City" by Section7, licensed under CC BY 4.0. Changes: trimmed to 24 seconds, time-stretched from about 129 to 120 BPM so the beats sit on the frame grid, faded in and out, and loudness-normalized.

What it does

• A designed video, not a template fill. The maker chooses the layout, motion and pacing. The brief gives rules, not a storyboard.
• Every on-screen number is live. A facts.ts script reads each fact from its source right before render and writes facts.json. The reel reads that file.
• The real brand. The end card uses the real Agent Swarm logo, never a redrawn mark.
• Music you may use. CC0 or CC BY only, cut to the beat, credited on the end card, and in the post with the source link, the license link and the changes made.
• A visible critique loop. At least three contact-sheet rounds, each one looked at, with the sheets kept.
• Delivery through agent-fs, with a share link per mp4, and a Lead review before anything is relayed.

Agents

• Lead — writes the brief from the requester's words, sets model and effort, reviews the frames, and relays the share links. The maker never posts.
• Maker — a Claude Code harness worker (provider: claude) on the full worker image, cloned from the Coder template. It needs Playwright with Chromium, ffmpeg, python3 with numpy, and write access to agent-fs. Codex, pi and other harnesses were not tried for this workflow.

Tools & Skills

Built-in (ships with agent-swarm)

• [Built-in] send-task — carries model: claude-opus-5-5 and effort: max per task, plus agentId to pin the maker.
• [Built-in] store-progress — the maker records its scratch directory in the first minute and the final artifacts at the end.
• [Built-in] defer-task with wakeOn:{event:"settled",taskIds:[...]} — waits for a source that is not ready (PRs still merging, an eval still running) so no draft number ships.
• agent-fs — the shared drive: deliveries, share-create links, download for byte-exact copies.
• skill-create / skill-install — put the four skills below into the swarm.

Custom (swarm-managed skills, shipped as copies in the template)

• [Custom] open-prompt-showreel — the Lead brief template, the maker procedure, render specs, music rules, the critique loop, delivery, feedback rounds.
• [Custom] video-generation — Remotion projects for repo-committed videos (README heroes, landing demos).
• [Custom] motion-design-video-analysis — reverse-engineer a reference clip into a rebuild spec, with a mandatory by-eye check of every model claim.
• [Custom] motion-design-replication — rebuild the feel of a reference clip with side-by-side frame critique.

No [ai-toolbox] skill is required.

Community template

• templates/community/open-prompt-showreel — PLAYBOOK.md, lead-prompt.md, setup.sh, tools/, skills/ and example/tla-races/.

Third-party tools

• ffmpeg — static 7.0.2 in the worker image: libx264, AAC, xstack, atempo, loudnorm. No ffprobe, no drawtext.
• Playwright 1.58.0 and Chromium — run the reel and grab frames.
• numpy — beat and drop analysis for the music cut.
• Remotion — only for the video-generation path.
• Fonts — Space Grotesk, JetBrains Mono and Instrument Serif Italic, from google/fonts under the SIL Open Font License.
• Music — incompetech (Kevin MacLeod, CC BY 4.0) and OpenGameArt, filtered by license.

Workflows / Schedules

None. This playbook runs on demand: a person asks for a video, the Lead sends one task. If you want a video per release, trigger the same brief from a release workflow and keep the Lead review step.

Setup, start to finish

Everything below was run in a worker container (x86_64, node 22.23.3, bun 1.4.0, python 3.12.3) unless marked not run. The full verification log is at the end of this page.

1. What the worker image already has

2. Install the template on the maker

git clone --depth 1 --filter=blob:none --sparse https://github.com/desplega-ai/agent-swarm.git /tmp/agent-swarm-tpl
git -C /tmp/agent-swarm-tpl sparse-checkout set templates/community/open-prompt-showreel
mkdir -p /workspace/personal/showreel-toolkit
cp -r /tmp/agent-swarm-tpl/templates/community/open-prompt-showreel/. /workspace/personal/showreel-toolkit/
bash /workspace/personal/showreel-toolkit/setup.sh

/workspace/personal survives a container restart. $HOME is not a safe place for anything you need again.

setup.sh skips whatever is already installed. In order, it:

1. Checks node, npm, bun, python3, curl and tar.
2. Checks ffmpeg has libx264, otherwise installs the pinned static build (same version and sha256 as Dockerfile.worker).
3. Installs ffprobe from the same tarball. Set INSTALL_FFPROBE=0 to skip.
4. Launches Chromium once through Playwright. If that fails, it runs npm install playwright@1.58.0 and playwright install chromium.
5. Creates a venv and installs numpy.
6. Downloads the three fonts and checks each against a pinned sha256.
7. Downloads the logo from agent-swarm.dev and from apps/ui/public/logo.png on main, and warns if they differ.
8. Copies tools/, example/ and itself, and writes env.sh.

On a clean directory this took 17.6 s. The second run took 0.9 s and installed nothing. With FORCE_LOCAL_FFMPEG=1 FORCE_LOCAL_PLAYWRIGHT=1 it ignores the image and installs its own ffmpeg, Playwright and a 622 MB Chromium; that path was run too.

3. Re-run setup at every container start

Append to the maker's setupScript with the update-profile tool. Keep what is already there.

# Showreel toolchain: idempotent, no-ops when already installed.
[ -f /workspace/personal/showreel-toolkit/setup.sh ] && bash /workspace/personal/showreel-toolkit/setup.sh >> /workspace/personal/showreel-toolkit/setup.log 2>&1 || true

Not run: changing a live profile.

4. Smoke test

. /workspace/personal/showreel-toolkit/env.sh
cd /workspace/personal/showreel-toolkit/example/tla-races && bash smoke.sh

It renders the example reel to a 16-frame contact sheet and a 2-second mp4 at 960x540 with a generated tone as the audio track. It checks the pixel format and the AAC stream, then renders once more with a broken audio file and checks that render.mjs exits non-zero and leaves no mp4. It needs no network, no gh and no agent-fs. Expect OK: yuv420p 960x540, OK: aac audio and OK: failed encode exits non-zero (8.8 s).

5. Install the skills

For each skills/<name>/SKILL.md in the template, a Lead calls skill-create with the file content and scope: "swarm", then skill-install on the maker. Install open-prompt-showreel on the Lead too.

Not run: skill-create writes to a live swarm. The four files do parse with the parseSkillContent function that skill-create calls.

The original skill also points at swarm-studio and studio-api for fixed-template creatives. They depend on a private repository and a hosted renderer, so they are not shipped. Send fixed-template asks to your own template toolkit.

6. Model and effort

Set both on every maker task:

model:   claude-opus-5-5
effort:  max
agentId: <maker>

Every brief ends with: "If you are not on claude-opus-5-5, stop and say so instead of rendering."

7. agent-fs delivery

The maker uploads to thoughts/<maker-agent-id>/videos/<slug>/ and never overwrites an earlier version (<slug>-v2, <slug>-v3). After each non-trivial write, check the size: agent-fs stat <path> --json | jq '.size'.

agent-fs --org <ORG_ID> --drive <DRIVE_ID> write thoughts/<maker-agent-id>/videos/<slug>/<file>.mp4 --file ./out/<file>.mp4
agent-fs --org <ORG_ID> --drive <DRIVE_ID> share-create thoughts/<maker-agent-id>/videos/<slug>/<file>.mp4 --expires-in 604800 --json

A share link opens a player with no login and lasts 7 days at most. Report the URL, the share id and the expiry. A raw signed URL downloads instead of playing, and a raw .mp4 is served as application/octet-stream. Use agent-fs download <path> -o <file> for a byte-exact copy (cat is paginated and truncates).

Not run: write to a real drive and share-create, which publishes a link. The flags were checked against the CLI's --help, and download was run on the example master.

Making one video

The brief

One task, one open prompt. The full template is in lead-prompt.md; the core is:

Your prompt: make a dynamic <15 | 15-30> second motion graphics video about <SUBJECT>.
Make it your showreel: show what an incredible motion designer you are. Go all out.

Content rule: every number or claim on screen comes from <SOURCE> and matches it exactly.
Anything not in the source stays off screen. Fewer numbers is fine: design-led, not a table.

Plus the how-to: ad hoc scratch directory, no repo or PR or template, the real logo, a contact sheet looked at three times, CC0 or CC BY music with a credit line, and the model gate. Do not write a storyboard, shot list or palette; those briefs produced the generic cuts.

Facts before design

The maker runs bun facts.ts > facts.json. The reel reads facts.json; nothing is hard-coded.

• A fact turns green only if main says so. A PR the brief calls merged but main does not stays red.
• If the source disagrees with the brief, the source wins, and the output says so.
• If the source is not ready, build on draft facts, defer-task with a wakeOn, and re-read on wake. Draft numbers never ship.

The reel and the critique loop

One reel.html draws each frame on a <canvas> as a pure function of the frame number, and exposes two functions that tools/render.mjs drives with Playwright:

window.boot = async (facts, fonts, logo) => { /* load fonts + logo, stash facts */ };
window.frame = (f) => { render(f); return cv.toDataURL("image/png"); };

. /workspace/personal/showreel-toolkit/env.sh
TK=/workspace/personal/showreel-toolkit
cd /workspace/personal/<slug>
export REEL=reel.html FACTS=facts.json MUSIC=music/<track>.json   # the credit file from fetch-music.sh is enough for stills
bash $TK/tools/sheet.sh 1920 1080 r1        # 16 frames, 4x4 contact sheet -> r1.png
COLS=5 bash $TK/tools/sheet.sh 1920 1080 t1 "180,183,185,187,189,190,191,192,193,194,196,198,200,203,206,209,212,215,220,230"   # transition strip

The final render needs music/current.json, which the music steps below write, and which carries the wav field. A --music file without wav renders a silent video and render.mjs warns about it. render.mjs creates the output directory and exits non-zero if ffmpeg fails.

node $TK/tools/render.mjs --reel reel.html --w 1920 --h 1080 --facts facts.json \
  --logo $LOGO --fonts "$FONTS" --music music/current.json --out out/<slug>-1920x1080.mp4

Each round the maker looks at the sheet and writes down what is weak: dead space, text too small for a phone, a cramped 4:5, jumpy easing, a hit off the beat. The last round checks every on-screen number against facts.json and the source, and opens the end-card frame alone at full size. The 4:5 cut is a second render at 1080x1350 because the layout is responsive to ?w=&h=. The 1080p render of the example took about 3.5 minutes.

Music: licensing and credit

CC0 or CC BY only. No NC, because it is a company post. No ND, because the track is cut and stretched. No SA, because it would carry over to the video. Pick a fresh track for each video and offer two alternates when music is in question.

bash $TK/tools/fetch-music.sh incompetech Voltaic music
bash $TK/tools/fetch-music.sh url https://opengameart.org/sites/default/files/mist_city.ogg music \
  "Mist City" Section7 "CC BY 4.0" https://opengameart.org/content/mist-city
python3 $TK/tools/music-analyze.py music/voltaic.mp3                      # bpm, beat phase, drop candidates
bash $TK/tools/music-cut.sh music/voltaic.mp3 <bpm> <drop_sec> music/cut.wav
bash $TK/tools/music-current.sh music/voltaic.json music/cut.wav          # writes music/current.json

fetch-music.sh accepts only CC0 1.0 and CC BY 1.0 to 4.0, matched case-insensitively (cc-by 4.0 works). It refuses everything else, including NC, ND, SA, "All rights reserved" and any string it does not know. It cannot check the source page, so read the license there yourself. It writes music/<slug>.json with the license link and a short credit for the end card. music-cut.sh stretches the track so the beats sit on the frame grid (120 BPM is 15 frames per beat at 30 fps) and the drop lands on the key reveal.

music-current.sh is the step that wires the audio in. It copies the track json to music/current.json and adds wav (the cut, which render.mjs muxes in as AAC) and attribution. Run it before the final render.

CC BY needs more than the end card line. The post must carry a link to the source, a link to the license, and a notice that the track was changed. The attribution string has all three, for example:

"Mist City" by Section7, https://opengameart.org/content/mist-city, licensed under CC BY 4.0, https://creativecommons.org/licenses/by/4.0/. Changes: trimmed, time-stretched to the video's beat grid, faded in and out, and loudness-normalized.

Set MODIFIED="..." to describe the edits more exactly. Paste attribution under the video in the post. Keep the short credit on the end card.

Delivery specs

• h264 High, yuv420p, AAC 192k, +faststart, libx264 -preset slow -crf 16.
• 1920x1080, plus 1080x1350 for feeds. Stream at exactly that size.
• 15 seconds for a brand showreel, 20 to 30 when the story carries data.

Lead review before relay

Before the Lead relays anything, it:

1. Opens the contact sheet and looks at the frames, not only the file list.
2. Opens the end-card frame: real logo, credit line present and readable.
3. Checks every on-screen number against facts.json, and facts.json against the source in the brief.
4. Checks the ffprobe line: h264, yuv420p, exact size, duration as briefed, and an aac audio stream when the video has music.
5. Plays the share link once.
6. Relays the share link, share id, expiry and the attribution string from music/current.json: source link, license link and the changes made.

Known gotchas

On the full-range gotcha: the ffmpeg side is reproduced (yuvj420p(pc) in, yuv420p(tv, bt709) out of x-reencode.sh). That X mishandles full-range files is a field report from our own posting runs, not something we reproduced.

Example: TLA+ races showreel

The prompt (abridged)

Make a dynamic 15 to 25 second motion graphics video about how a model checker (TLA+) found real race conditions in Agent Swarm, each one pinned as a failing test and then turned green by a fix PR. Make it your showreel: show what an incredible motion designer you are. Go all out.

The only content rule: every number, PR and race on screen is read live right before the final render. Anything you cannot confirm stays off screen. Fewer facts is fine: design-led, not a ledger.

It also carried the standard how-to above and the claude-opus-5-5 gate.

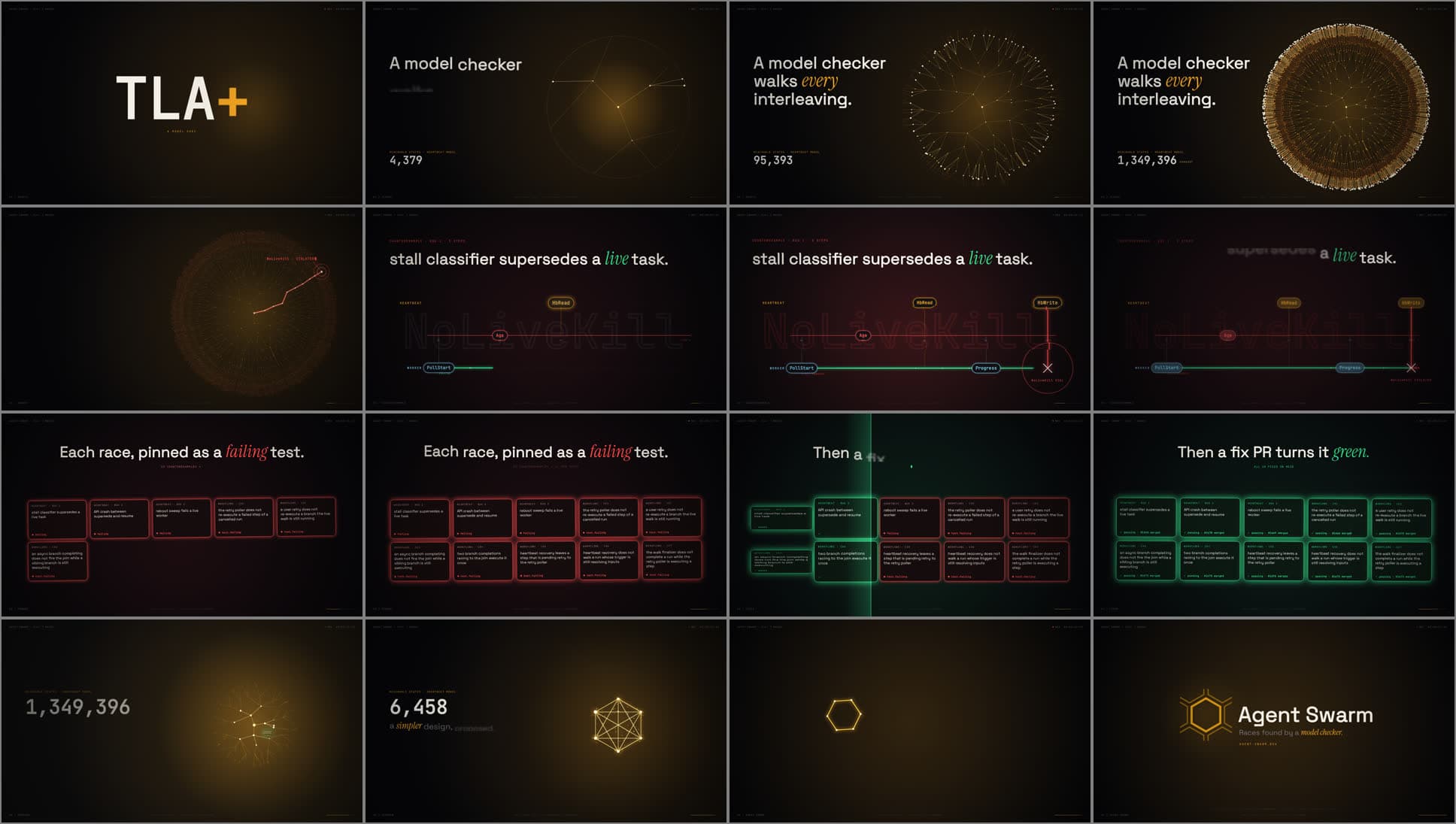

The contact sheet

Sixteen frames across the 24 seconds of the final cut: the title, the particle field counting reachable states, the counterexample timeline, the ten red tiles, the green sweep, the counter collapsing, the hexagon morphing into the real logo, and the end card.

How the facts got on screen

example/tla-races/facts.ts produced facts.v3.json from four live sources. The reel draws only a handful of the facts.

The ten tiles are the 3 heartbeat bugs and the 7 workflow races. Their fix PRs are #1666, #1668, #1669, #1670, #1673, #1675 and #1678.

v1 to v3

The final cut is tla-races-showreel-v3: 24.00 s, h264 High, yuv420p, 1920x1080, 30 fps, AAC. This page embeds a 1280-wide 2.6 MB copy committed to the docs site, so the URL does not expire. The 17.8 MB master stays in agent-fs.

Verification log

Tips for new swarm users

• Brief with rules, not a layout. The more you specify the design, the more generic the cut.
• Make the source win. Facts read live beat facts typed into a brief.
• Keep the scratch directory in /workspace/personal. A restart mid-render costs minutes there and hours anywhere else.
• Look at the frames yourself before you relay. A render that passes every automated check can still have a wrong end card.
• Credit the music in the video and in the post. CC BY requires the source link, the license link and a notice of the changes. The end card line is short; the post carries the rest.

References

• templates/community/open-prompt-showreel: the template, tools, skills and example reel.
• Remotion: React video framework behind the video-generation path.
• Playwright: browser automation used to grab frames.
• Creative Commons licenses: CC0 and CC BY terms.
